Why Do Battery Energy Storage Systems Demand Custom Laminated Flexible Copper Busbars?

Battery energy storage systems are not generic power cabinets. They are engineered environments where every component faces a combination of stresses that most standard electrical hardware was never designed to survive long-term: deep thermal cycling as cells charge and discharge thousands of times, mechanical vibration from cooling fans and transport, tight inter-module spacing that leaves no room for dimensional compromise, and DC voltage architectures that can reach 1500 V depending on string configuration. A standard catalog busbar — fixed length, fixed cross-section, insulation rated for the broadest possible range of panel-building applications — runs into trouble fast in this environment. The conductor fatigues at bolted joints. The insulation rating carries no margin for the actual system voltage. The terminal hole pattern doesn't match the cell-module mounting plate. These are not edge cases; they are the predictable consequences of specifying a commodity component into a precision application.

At ZHERUTONG, we manufacture custom laminated flexible copper busbars for battery energy storage systems specifically because this is where the gap between catalog hardware and engineering reality is most consequential. The engineers and OEM clients we work with have already tried the catalog. They come to us when they need a part that is actually designed for their system.

What Actually Makes a Laminated Flexible Busbar Different From a Rigid One?

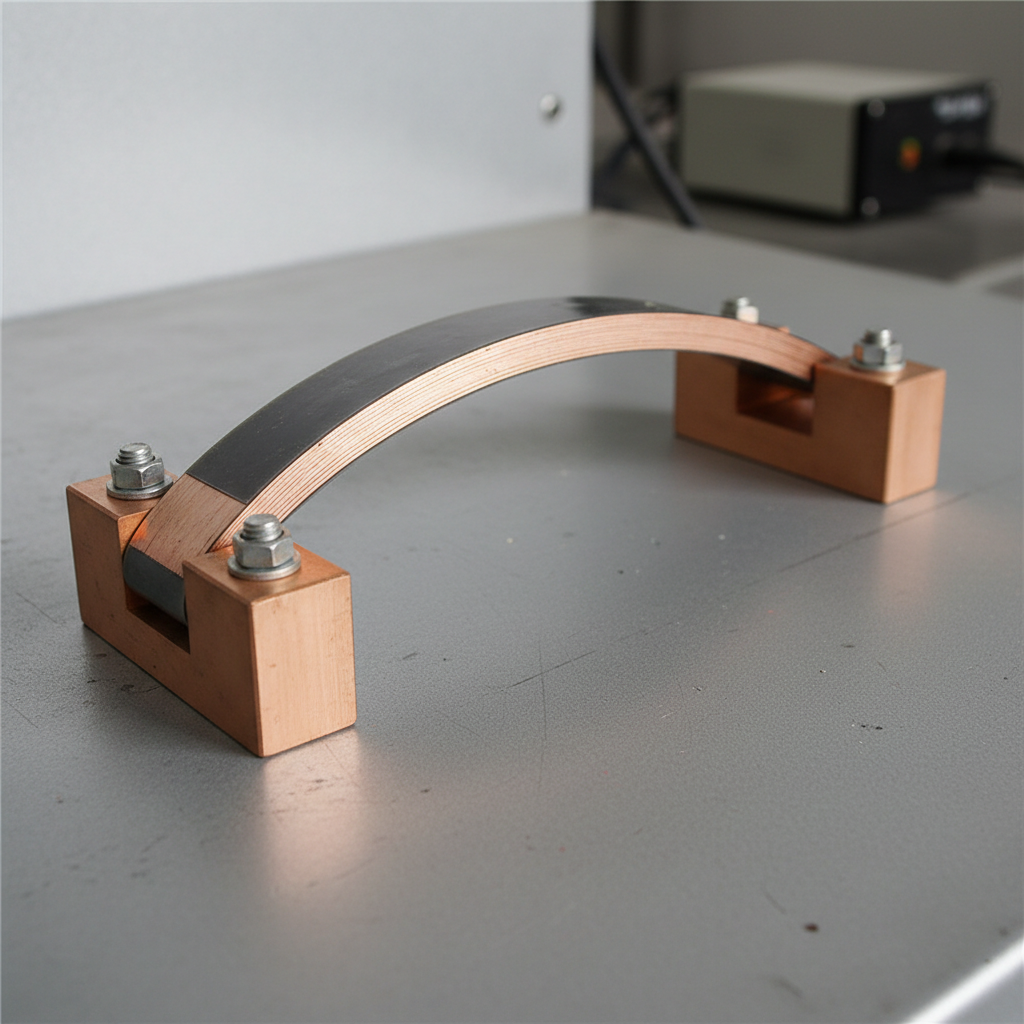

A laminated flexible copper busbar is built from multiple thin copper foil layers — typically 0.1 mm to 0.5 mm per layer — bonded or compressed together, so the stack bends as a unit while each individual layer carries current independently, dramatically reducing mechanical stress at connection points compared to a single solid conductor of equivalent cross-section.

The physics here matter and are worth understanding precisely. When you bend a solid conductor, the outer surface is in tension and the inner surface is in compression — and the stress magnitude scales with the square of the thickness. Split that same cross-section into N layers of equal thickness and the bending stiffness of each individual layer drops by N². A 10-layer laminate of the same total cross-section is approximately 100 times more flexible than the equivalent solid bar. In a BESS module that thermally expands and contracts with every charge cycle, that difference determines whether the conductor absorbs the movement or transmits it as fatigue stress into the bolted terminal joint.

Copper foil grade is not a secondary consideration. At ZHERUTONG we use ≥99.95% electrolytic tough pitch (ETP) copper strip as the baseline material. Storage system designers calculating I²R losses across 60 to 80 individual inter-module connections in a 280Ah LiFePO4 rack system cannot afford conductivity uncertainty — a lower-purity alloy or inconsistent foil thickness introduces resistance variability that compounds across every connection in the string.

The layer count and foil thickness selection is where the real engineering trade-off lives. More layers produce more flexibility, but they also increase the total number of interlayer contact interfaces. If those interfaces are not properly compressed at the terminal ends, interlayer contact resistance rises and the effective conductivity of the stack falls below what the cross-section alone would predict. This is why layer count, foil thickness, and termination method must be specified together as a system — not selected independently from a catalog. A customer who asks for "more flexibility" without specifying their flex-travel distance and current requirement is asking a question that cannot be answered without the full picture.

Rigid busbars fail in BESS environments through a predictable sequence: thermal expansion mismatch between the conductor and the module housing creates stress at the bolted joint; repeated cycling accumulates fatigue; after enough cycles the joint develops micro-cracking or loosening that increases contact resistance; and the system either fails thermally or triggers a BMS fault. The laminated flexible design interrupts this sequence at the first step by giving the conductor somewhere to move.

How Do You Specify the Right Custom Laminated Busbar for a BESS Application?

Correctly specifying a custom laminated flexible copper busbar for a battery energy storage system requires defining at minimum six parameters: total cross-sectional area (mm²), individual foil layer thickness, number of layers, terminal hole pattern and plating, insulation class and voltage rating, and the mechanical envelope — because changing any one of these changes the others.

What Cross-Section and Layer Count Does Your System Require?

Cross-sectional area determines current-carrying capacity — for most commercial BESS inter-module connections we see requirements ranging from 35 mm² to 400 mm² — while layer count determines how much flex travel the busbar can accommodate without fatigue.

Current density for copper busbars in enclosed BESS enclosures typically targets 2 to 4 A/mm² depending on the thermal management design. A rack with active liquid cooling can push toward the upper end of that range; a passively cooled cabinet should stay conservative. The table below shows how these parameters map to typical BESS connection scenarios:

When ZHERUTONG's engineering team receives an ampacity target and a flex-travel distance from a customer, we work backward through this matrix to arrive at a recommended stack configuration. The goal is to achieve the required current rating without over-specifying layer count — because unnecessary layers add cost and, if the terminal compression is not matched to the stack height, can actually degrade contact quality at the ends.

Which Insulation Grade Matches BESS Voltage Architecture?

Battery energy storage systems commonly operate at DC voltages between 48 V and 1500 V depending on string configuration, and the insulation system on a custom laminated busbar must be rated beyond the system's maximum DC working voltage with an appropriate safety margin — typically 1.5× to 2× the nominal voltage.

The three insulation materials we use most frequently at ZHERUTONG each serve a different segment of the BESS design space:

PVC insulation is cost-effective and rated to 1000 VAC / 1500 VDC, with a dielectric strength of approximately 20 kV/mm. It handles the majority of commercial rack-scale BESS applications and is available in halogen-free formulations for markets requiring compliance with IEC 60332 or EN 50575.

Cross-linked polyethylene (XLPE) offers higher temperature tolerance than standard PVC — typically rated to 90°C continuous — with dielectric strength in the range of 20 to 30 kV/mm. It is the preferred choice when the busbar runs in a high-ambient-temperature zone of the cabinet, such as near the inverter heat sink.

Silicone insulation covers the extreme temperature range from -60°C to +180°C, with dielectric strength of approximately 18 to 25 kV/mm. It is specified for applications where the busbar must survive both cold-start conditions in outdoor containerized storage and sustained high-temperature operation.

UL 94V-0 flame retardancy is not optional in enclosed battery cabinets. Thermal runaway in a single cell can propagate rapidly through a cabinet, and insulation that contributes to flame spread is a system-level safety failure. All insulation materials we specify at ZHERUTONG meet UL 94V-0 as a baseline. Insulation thickness also affects the overall busbar envelope — a constraint that matters when fitting into tight BESS rack designs where the clearance between adjacent busbars is already determined by the module layout.

Why Does Vibration Resistance Matter So Much in Industrial Inverter and Storage Applications?

In industrial inverter enclosures and battery storage racks, mechanical vibration from cooling fans, transformer hum, and transport stress creates cyclic fatigue at rigid conductor joints — and a properly specified laminated flexible copper busbar absorbs this movement rather than transmitting it to terminal connections, which is why flexible busbar vibration resistance specifications for industrial inverters are a primary selection criterion, not an afterthought.

Vibration in a BESS or inverter system comes from several sources simultaneously. Cooling fan harmonics typically fall in the 50 to 300 Hz range and are present continuously during operation. Transformer magnetostriction generates lower-frequency vibration that couples into the cabinet structure. For containerized storage units deployed in remote locations, road transport introduces broadband vibration profiles that can be characterized by IEC 60068-2-6 test standards — sinusoidal sweep from 10 to 500 Hz at accelerations up to 2g depending on the transport classification.

The mechanism by which a laminated copper stack resists vibration is fundamentally different from what a solid bar does. In a solid bar, vibration stress is transmitted directly and in full to the bolted terminal joint — the weakest point in the conductor path. In a laminated stack, each foil layer slides microscopically against its neighbor during vibration cycles. The stack acts as a distributed mechanical damper, dissipating energy across the full length of the laminate rather than concentrating it at the joint. The result is that the terminal joint sees a fraction of the vibration amplitude that the mounting structure experiences.

The flexible busbar vibration resistance specifications for industrial inverters that procurement engineers should request from any flexible busbar manufacturer include: the frequency range tested (Hz), the acceleration amplitude in g, the number of test cycles completed, the test standard referenced (IEC 60068-2-6 or equivalent), and — critically — the contact resistance measurement at terminal joints before and after the vibration profile. That last point is the one most often omitted from supplier data sheets, and it is the only measurement that tells you whether the joint actually stayed tight.

At ZHERUTONG, we have worked with customers supplying industrial inverter assemblies where vibration-induced joint loosening was the specific failure mode being designed out. The solution in those cases was not simply "use a flexible busbar" — it was a combination of the correct laminate configuration, the correct terminal hole diameter tolerance (±0.05 mm on the drilled hole to ensure bolt engagement without play), and the correct plating selection for the joint material. Tin plating on a tinned copper terminal maintains consistent contact resistance under vibration; silver plating is preferred where the joint will see elevated temperature cycling in addition to vibration. The terminal design and the laminate design are not independent problems.

What Does the Customization Process Look Like When Working With ZHERUTONG?

At ZHERUTONG, the customization process for a laminated flexible copper busbar typically moves from drawing or sample review, through material and stack configuration confirmation, to prototype production and electrical/mechanical validation — most standard custom configurations reach prototype stage within 7 to 15 working days from confirmed specification.

The process begins with what the customer sends us. We can work from a formal engineering drawing, a physical sample, or a specification sheet — and we frequently work from all three simultaneously when a customer is redesigning an existing part. At minimum, we need cross-section, overall length, terminal hole pattern, voltage class, and target quantity to begin the engineering review.

The engineering review is where we check manufacturability before committing to tooling. The key constraints we evaluate are minimum bend radius relative to the total stack height (a thicker stack requires a larger minimum radius to avoid delamination at the bend), foil layer count versus terminal welding feasibility (very high layer counts require adjusted compression parameters at the cold-weld termination), and insulation material compatibility with the customer's assembly environment — silicone insulation, for example, requires different handling during installation than PVC.

Material sourcing is controlled to ≥99.95% ETP copper purity with foil thickness tolerance held to ±0.01 mm. Layer alignment before lamination pressing is a process step that directly affects interlayer contact resistance — misaligned layers create uneven pressure distribution at the terminal ends, which shows up as elevated contact resistance in the final electrical test.

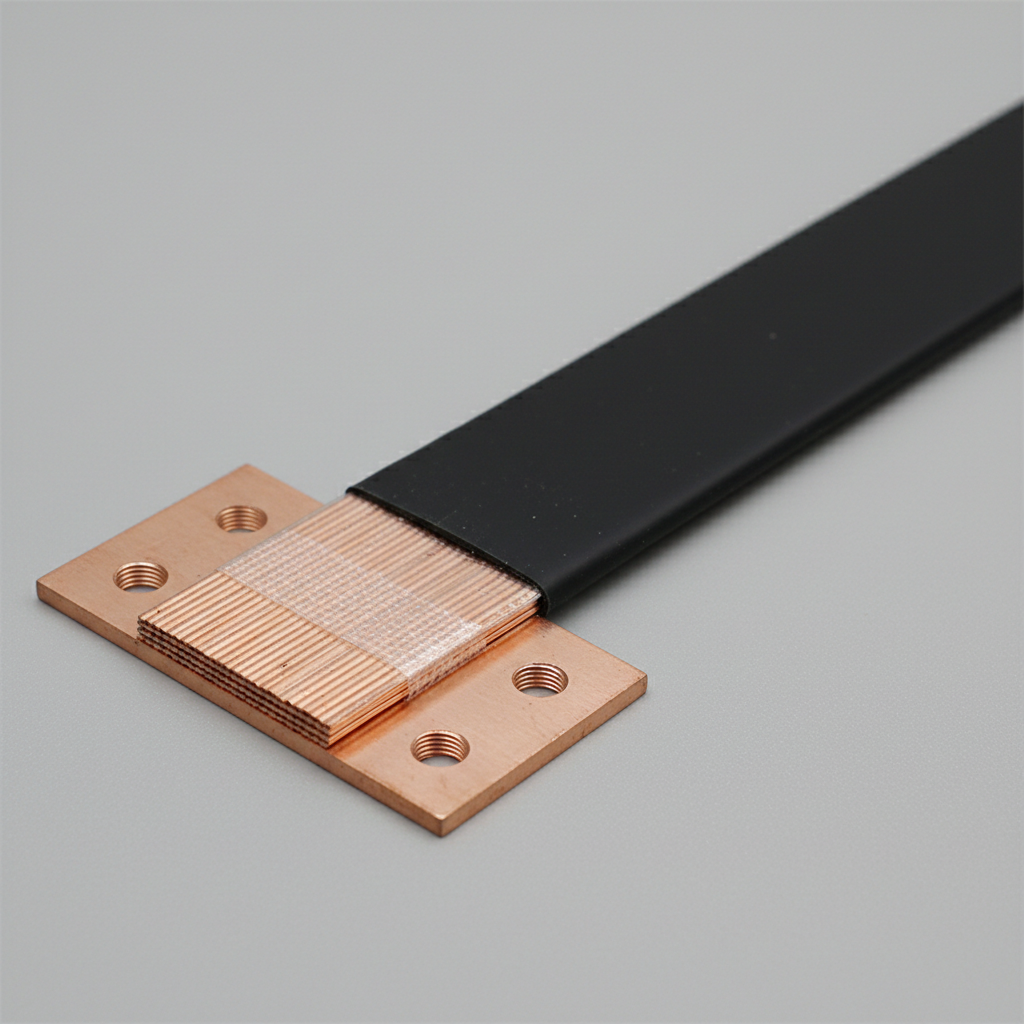

Termination options at ZHERUTONG include cold-welded (diffusion-bonded) ends, mechanical clamping, and tin, silver, or nickel-plated drilled terminals. Cold-welded ends produce the lowest interlayer contact resistance and are preferred for high-current applications. Drilled and plated terminals are the standard choice for most BESS inter-module connections because they allow the customer to use standard bolt hardware in their assembly process.

Insulation is applied by extrusion, heat-shrink sleeve, or dip coating depending on the geometry and insulation material. Extrusion produces the most dimensionally consistent insulation wall thickness and is preferred for production volumes. Heat-shrink sleeve is faster for prototype quantities and for geometries with complex bends.

Before shipment, every batch goes through dimensional check, dielectric withstand test at the specified voltage, and contact resistance measurement at both terminal ends. For customers with non-standard terminal spacing requirements — a situation we encounter regularly when a BESS rack designer has already committed to a module mounting plate layout — we produce custom drilling fixtures rather than asking the customer to modify their design. A 5 mm mismatch in terminal hole spacing can require a complete redesign of the cell-module mounting plate; it is far less expensive to absorb that constraint in the busbar tooling.

How Do Custom Laminated Busbars Compare to Standard Catalog Options for BESS Projects?

Standard catalog flexible busbars are engineered for the broadest possible range of panel-building applications, which means their cross-sections, lengths, and insulation ratings are optimized for common scenarios — not for the specific current path, thermal envelope, and mechanical constraints of a particular BESS rack design, which is why custom laminated busbars consistently outperform catalog products in system-level efficiency and fit.

The comparison is most clearly illustrated at the specification level:

The dimensional precision point deserves emphasis. In BESS rack designs, a mismatch of even 5 mm in terminal hole spacing can require a redesign of the cell-module mounting plate — a change that propagates through mechanical drawings, tooling, and assembly procedures. Specifying a custom laminated busbar to the exact hole pattern eliminates this risk entirely. The busbar adapts to the system design, not the other way around.

The insulation rating point is equally important in high-voltage storage architectures. A catalog busbar rated to 1500 VDC at its nominal specification may carry no derating data for elevated temperature or humid environments. A custom specification built around the actual system voltage with an explicit 1.5× to 2× safety margin, and an insulation material selected for the cabinet's thermal environment, provides a defensible engineering basis that a catalog selection cannot.

What Are the Most Common Questions About Custom Laminated Flexible Copper Busbars for BESS?

Engineers and procurement teams evaluating custom laminated busbars for battery storage projects consistently ask the same core questions — here are the ones we answer most often at ZHERUTONG.

What Minimum Order Quantity Does ZHERUTONG Accept?

We accept prototype orders from as few as 5 pieces for custom laminated flexible copper busbars, with no tooling surcharge for standard terminal configurations.

For non-standard terminal spacing or unusual geometry that requires dedicated drilling fixtures, we discuss tooling cost transparently at the engineering review stage — it is typically a one-time cost that is absorbed into the unit price at production volumes.

Can ZHERUTONG Produce Busbars Rated for 1500 VDC BESS Architectures?

Yes — we specify insulation systems to 1500 VDC working voltage as standard for high-voltage storage applications, with halogen-free and UL 94V-0 compliant options available.

For systems operating at voltages above 1000 VDC, we recommend XLPE or silicone insulation over standard PVC to maintain the required safety margin across the operating temperature range of the cabinet.

How Does ZHERUTONG Verify Vibration Resistance on Finished Busbars?

We perform post-vibration contact resistance measurement at terminal joints per agreed test profiles, and can provide test reports with each production batch on request.

This is the measurement that matters — not just whether the busbar survived the vibration profile visually intact, but whether the joint resistance stayed within specification after the full test cycle.

What Surface Finishes Are Available for Busbar Terminals?

Tin plating, nickel plating, and silver plating are all available — the choice depends on your joint material, operating temperature, and whether the connection will be bolted or welded.

Tin is the standard choice for most BESS inter-module connections. Silver is specified when the joint will see sustained elevated temperature. Nickel provides the best corrosion resistance for outdoor or high-humidity cabinet environments.

Does ZHERUTONG Support Customers Who Only Have a Sample, Not a Drawing?

Yes — send us a physical sample or clear dimensional photographs and we will reverse-engineer the specification and confirm it with you before production begins.

This is a common starting point for customers replacing a part from a supplier who no longer provides documentation, or for teams who inherited a system design without complete engineering records.

---

As BESS projects scale from commercial rack systems to grid-level containerized storage, the electrical interconnect inside each module becomes a more consequential engineering decision — not a commodity purchase. The laminated flexible copper busbar sitting between your battery cells and your inverter input carries the full system current under the most thermally and mechanically demanding conditions the enclosure will ever see. Getting that component right at the specification stage is far less expensive than redesigning around a fit or performance problem after tooling is committed.

If you are working on a BESS project, an industrial inverter platform, or any application where a standard busbar catalog has already disappointed you — send your drawings, specifications, or samples to ZHERUTONG's engineering team at rtdq@rtbusway.com. We will review your requirements and respond with a technical proposal and sample lead time, typically within one business day.
